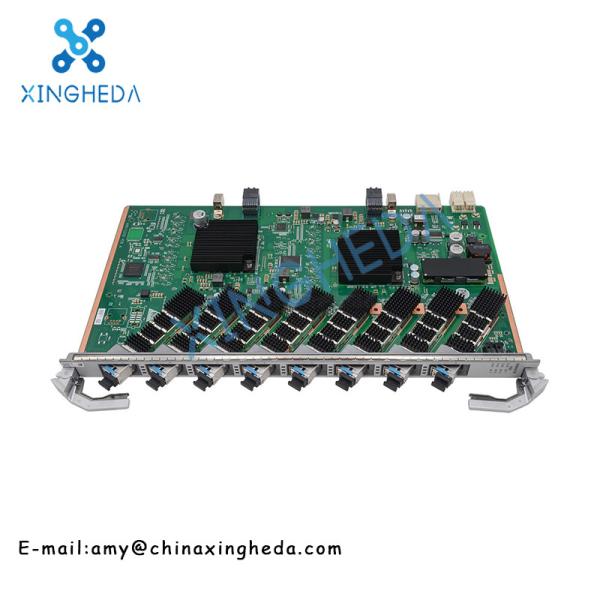

HUAWEI H901CGID 03024GEC Huawei MA5800 Series10G GPON And GPON N2a Board

  • 1
  • 2
  • 3

Brand Name : HUAWEI

Model Number : H901CGID

Place of Origin : CHINA

MOQ : 1pc

Price : $100-$200

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : HUAWEI 03024GEC

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI H901CGID 03024GEC Huawei MA5800 series10G GPON and GPON N2a Board

Product Desription:

Huawei 8-port 10G GPON and GPON combo OLT Interface Board with XGPON&GPON XFP N2a Optical Module

Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system

Max split radio: GPON 1:128 XG-PON: 1:256

GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s

XG-PON channel: Tx: 9.953Gbit/s, Rx: 2.488Gbit/s

Interface Type: SC

H901CGID is an 8-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

Specification:

Specification
Service ports
GPON Port 8 XG-PON & GPON ports
GPON SFP+ Module Specification
Type One-fiber bidirectional optical module, N2a
Operating Wavelength GPON channel:

Tx: 1490 nm

Rx: 1310 nm

XG-PON channel:

Tx: 1577 nm

Rx: 1270 nm
Encapsulation Type XFP
Port Rate

GPON channel:

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

XG-PON channel:

Tx: 9.953 Gbit/s

Rx: 2.488 Gbit/s
Minimum Output Optical Power

GPON channel: 3 dBm

XG-PON channel: 4 dBm
Maximum Output Optical Power

GPON channel: 7 dBm

XG-PON channel: 8 dBm
Maximum Receiver Sensitivity

GPON channel: -32 dBm

XG-PON channel: -29.5 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power

GPON channel: -12 dBm

XG-PON channel: -9 dBm
Extinction Ratio 8.2 dB
Function
Forwarding capability 80 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port

GPON: 1024

XG-PON: 2048
Service flows per PON board 16368
Maximum frame size

2052 bytes

9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072

Maximum distance difference between

two ONUs under the same PON port

 40 km
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption

Static: 48 W

Maximum: 78 W
Operating temperature -40°C to +65°C
