Name: HUAWEI GSCC SSN4GSCC 03020CQV Huawei OSN3500 System Control And Communication Board
Brand: HUAWEI
Price: 100 USD

HUAWEI GSCC SSN4GSCC 03020CQV Huawei OSN3500 System Control And Communication Board

Brand Name : HUAWEI

Model Number : SSN4GSCC

Place of Origin : CHINA

MOQ : 1pc

Price : $100-$200

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : HUAWEI 03020CQV

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI GSCC SSN4GSCC 03020CQV Huawei OSN3500 System Control and Communication Board

Product Desription:

System Control and Communication Board

Apply to the OptiX OSN 3500, OSN 7500 equipment.

Supports channel types of D1-D1, D1-D3, and D4-D12.

Processes the E1, E2, F1, and serial1–4 bytes.

Supports the monitoring of the –48 V or –60 V power supply.

Supports the in-service check function and the failure check function.

Supports the 1+1 Hot Backup for the SCC Unit protection schemes.

Supports one channel of ECC communication.

Supports service performance monitoring and collects information about the performance events and alarms.

Provides 16 alarm inputs and four alarm outputs through the AUX.

Controls the four cabinet indicators through the AUX.

Supports intelligent fan speed control and manages the fan alarms.

Supports simulation package loading and diffused loading.

SSN4GSCC is a Main Control board for Huawei OSN3500 and OSN 7500, provide system control, orderwire, communication and system power supply monitoring. Part number is 03020CQV, Normally configure as 1+1 redundancy.

Specification:

Valid Slot

OSN 3500: The SSN4GSCC can be installed in slots 17 and 18 in the subrack.

OSN 7500: The SSN4GSCC can be installed in slots 24 and 25 in the subrack.

Mechanical Specifications

Dimensions (mm)

25.4 (W) x 235.2 (D) x 261.4 (H)

Weight(kg)

1.0

Product details:

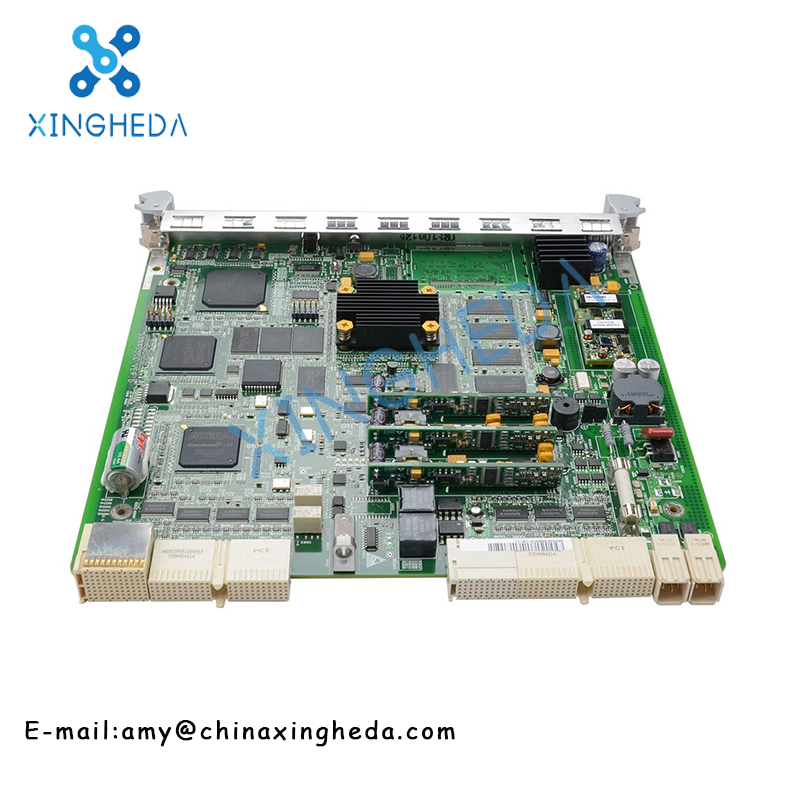

HUAWEI GSCC SSN4GSCC 03020CQV Huawei OSN3500 System Control And Communication Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
HUAWEI GSCC SSN4GSCC 03020CQV Huawei OSN3500 System Control And Communication Board
